Customized Double Sided PCB HASL Circuit Board For Automotive Industry

Name: Customized Double Sided PCB HASL Circuit Board For Automotive Industry
Brand: xingqiang
Price: 1 USD

Brand Name : xingqiang

Model Number : Varies by goods condition

Certification : ROHS, CE

Place of Origin : China

MOQ : Sample,1 pc(5 square meters)

Price : NA

Payment Terms : ,T/T,Western Union

Supply Ability : 3000

Delivery Time : 7-10 work days

Customized : Yes

Min. Line Width/Spacing : 0.075mm

Minimum Hole Size : 0.1mm

Shipping Method : Express or Seashipment

Type : TFT

Minimum Line Space : 3mil (0.075mm)

Silkscreen : White, Black, Yellow

Max Board Size : 528 mm x 600 mm

Treatment : HASL

Lead Time : 4 Working Days

Categary : Automotive PCB Assembly

Thermal Conductivity : 0.3-0.5 W/mK

Thickness Of Copper : 0.5-14oz (18-490um)

Contact Now

Advantages and Characteristics of Double-Sided Hot Air Solder Leveling (HASL) Circuit Board​

Product Description​

The double-sided HASL circuit board is a printed circuit board featuring hot air solder leveling on both sides of the substrate. Through this process, molten tin alloy (lead-containing or lead-free) coats the copper surfaces and is leveled by hot air, forming uniform and flat tin layers. With a double-sided wiring design, it meets the signal transmission needs of small to medium complexity circuits and is suitable for welding and assembly of conventional components.​

Core Characteristics​

Double-sided HASL treatment: Both sides have tin layers with strong adhesion and bright surfaces, providing a reliable foundation for soldering.​

Double-sided wiring structure: Supports bidirectional signal transmission, adapting to circuit layout requirements of standard electronic devices and satisfying small to medium-scale circuit design needs.​

Mature process compatibility: The HASL process is stable, integrating well with the substrate, and adapts to conventional production workflows.​

Main Advantages​

Dependable soldering performance: The tin layers ensure good solder wetting, reduce cold solder joint risks, and allow multiple rework soldering, facilitating mass assembly and post-maintenance.​

Effective protection: The tin layers shield copper surfaces from external environmental factors, enhancing corrosion resistance and extending the board’s service life.​

Cost-effectiveness: The mature HASL process offers high production efficiency and controllable costs, making it suitable for cost-sensitive fields like consumer electronics, home appliances, and industrial control.​

Decent environmental adaptability: Maintains stable performance in normal temperature, humidity, and general dust environments, ensuring consistent operation over time.

Product Tags:

Double Sided PCB For Automotive Industry

Automotive Industry HASL Circuit Board

Quality Customized Double Sided PCB HASL Circuit Board For Automotive Industry for sale

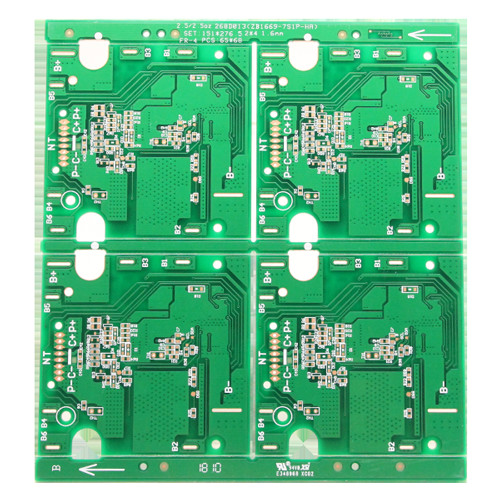

Customized Double Sided PCB HASL Circuit Board For Automotive Industry Images
